Description

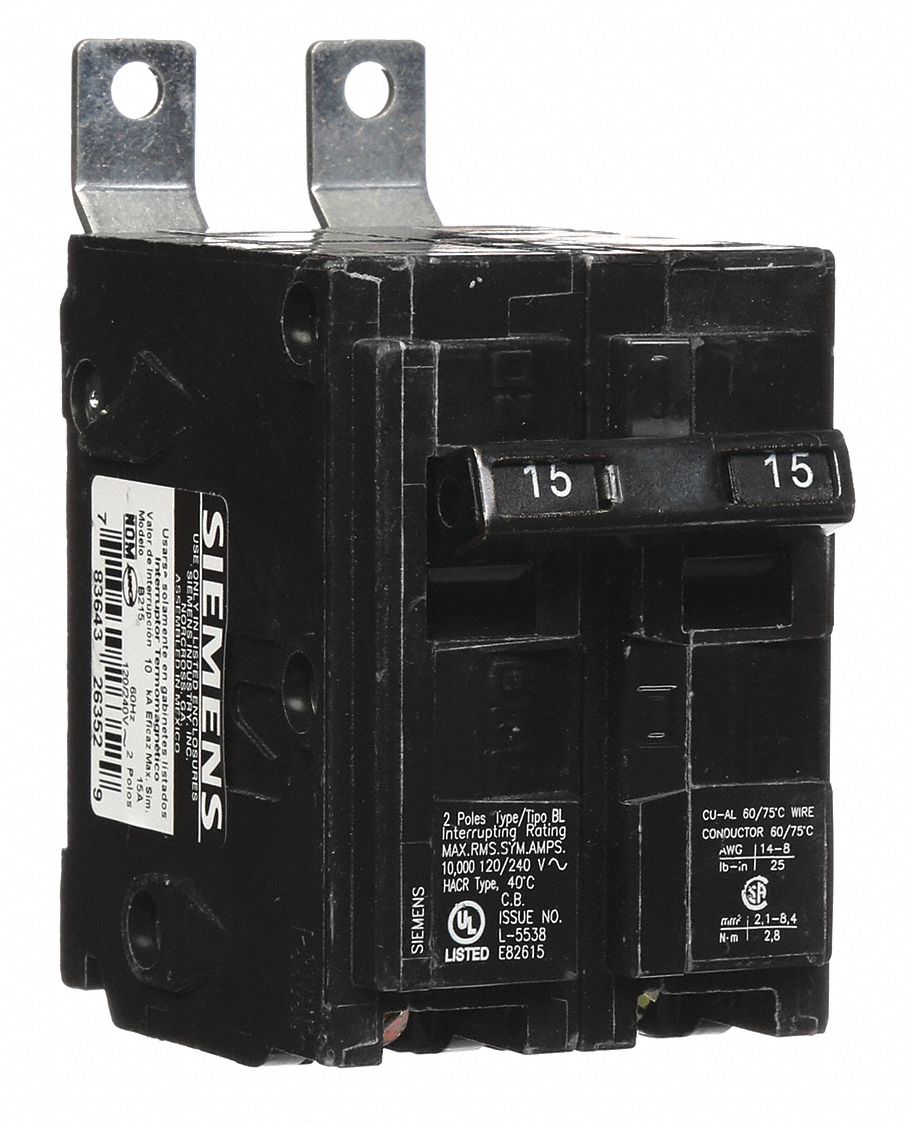

Miniature Circuit Breaker Amps 15 A AC Voltage Rating 120/240V AC Circuit Breaker Type Standard Number of Poles 2 DC Voltage Rating Not Rated Circuit Breaker Actuator Toggle Circuit Breaker Mounting Style Bolt On Compatible Panelboard/Load Center Series P1 Phase Single Series BL Max AIR Rating 10kA at 120/240V AC For Use With Siemens P1 Panelboards Terminal Connection Lug Frame Size 125A/BL Length 4 in Width 2 in Depth 3 in Min Wire Size 12 AWG (Al) 14 AWG (Cu)
Features
Extra Information
Processing Time:
2-3 days
