Description

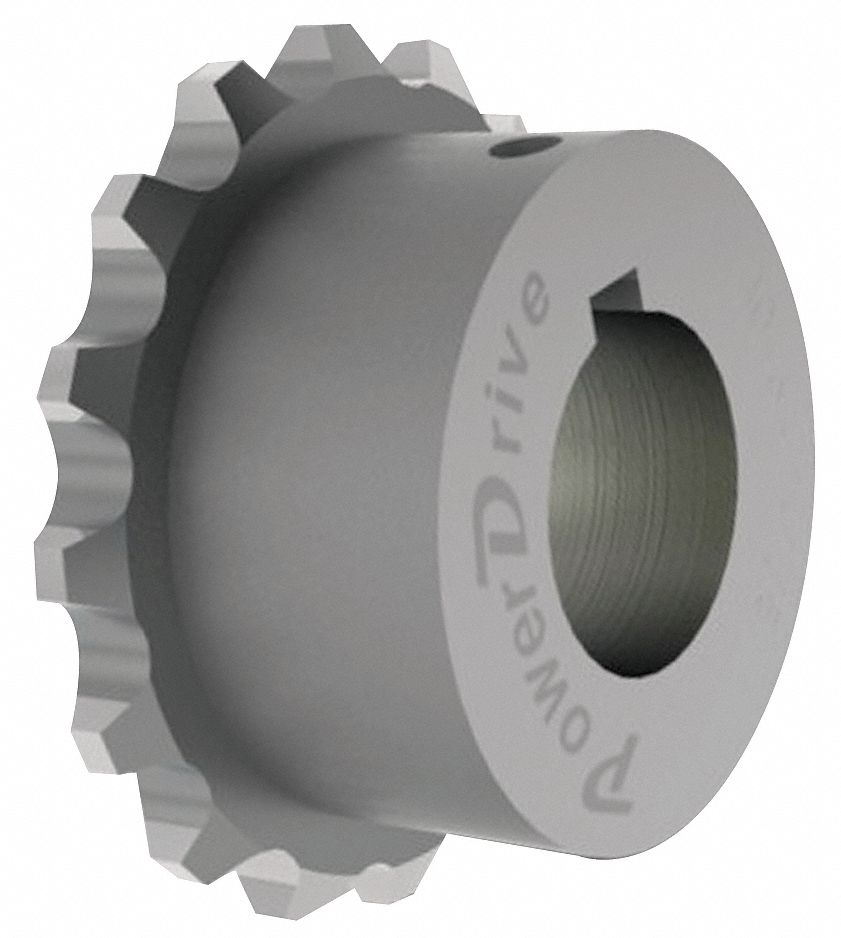

Chain Coupling Sprocket Chain Number 40 Bore Diameter 1 1/4 in Bore Type Round Keyed Horsepower @ 100 RPM 4.
14 hp Outside Diameter with Chain 3 in Hub Diameter 1 3/8 in For Chain Pitch 1/2 in Keyway Depth 1/8 in Keyway Width 1/4 in Maximum Angular Misalignment 1 Degrees Number of Teeth 16 Parallel Misalignment 0.
005 in System of Measurement Inch Axial Motion 0.
06 in For Cover Part Number AL40 Horsepower @ Maximum RPM 16.
9 hp @ 4 000 RPM- Alternate Part Numbers- 6AGR3- C4016X114- 6AGR3
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
IN
Manufacturer Name:
C4016X 1 1/4
Manufacturer Part Number:
POWER DRIVE
