Product Overview

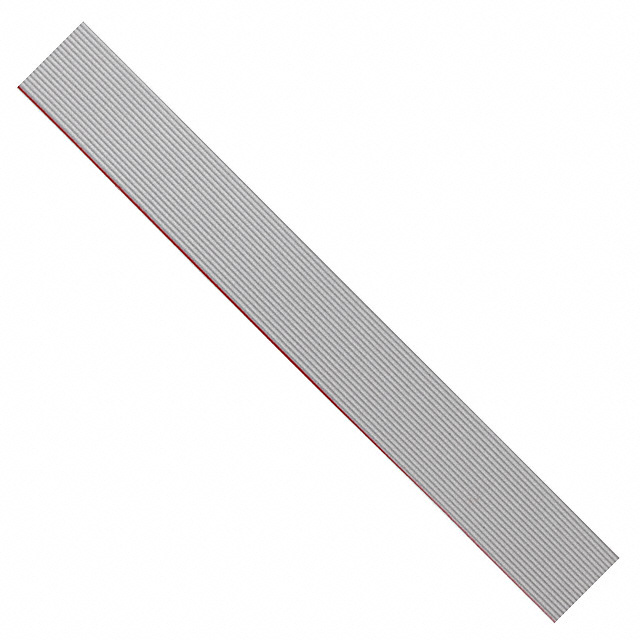

The Flat Ribbon Cable Gray with 20 conductors is designed for versatile connections in various electronic applications. Each conductor has a nominal thickness of 0.025" (0.64mm), and the cable is suitable for use in both flexible and stationary installations.
Key Features
- 20 Conductors for extensive connectivity options.
- Flat cable design facilitates easy routing and installation.
- 0.025" (0.64mm) pitch for close conductor spacing.
- High-quality PVC jacket for durability and insulation.
- Operating temperature range from -20°C to 105°C.
- Excellent insulation resistance of 10GOhm.
- UL Style 20596 ratings for added reliability.
Benefits
- Versatile for various electrical and electronic projects.
- Simplified handling with the flat design.
- Ensures reliable connections with high conductor counts.
- Efficient heat and electrical insulation.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | 3M |
| Series | 3754 |
| Cable Type | Flat Cable |
| Number of Conductors | 20 |
| Pitch | 0.025" (0.64mm) |
| Wire Gauge | 30 AWG |
| Conductor Strand | 7 Strands / 38 AWG |
| Shielding | Unshielded |
| Jacket Color | Gray |
| Voltage | 30 V |
| Operating Temperature | -20°C ~ 105°C |
| Insulation Resistance | 10GOhm |
| First Conductor Mark | Red |
| Spool Size | 300.0' (91.44m) |
Features
Specs
Country of Origin:
USA
Manufacturer Name:
3M
Manufacturer Part Number:
3754/20
