Product Overview

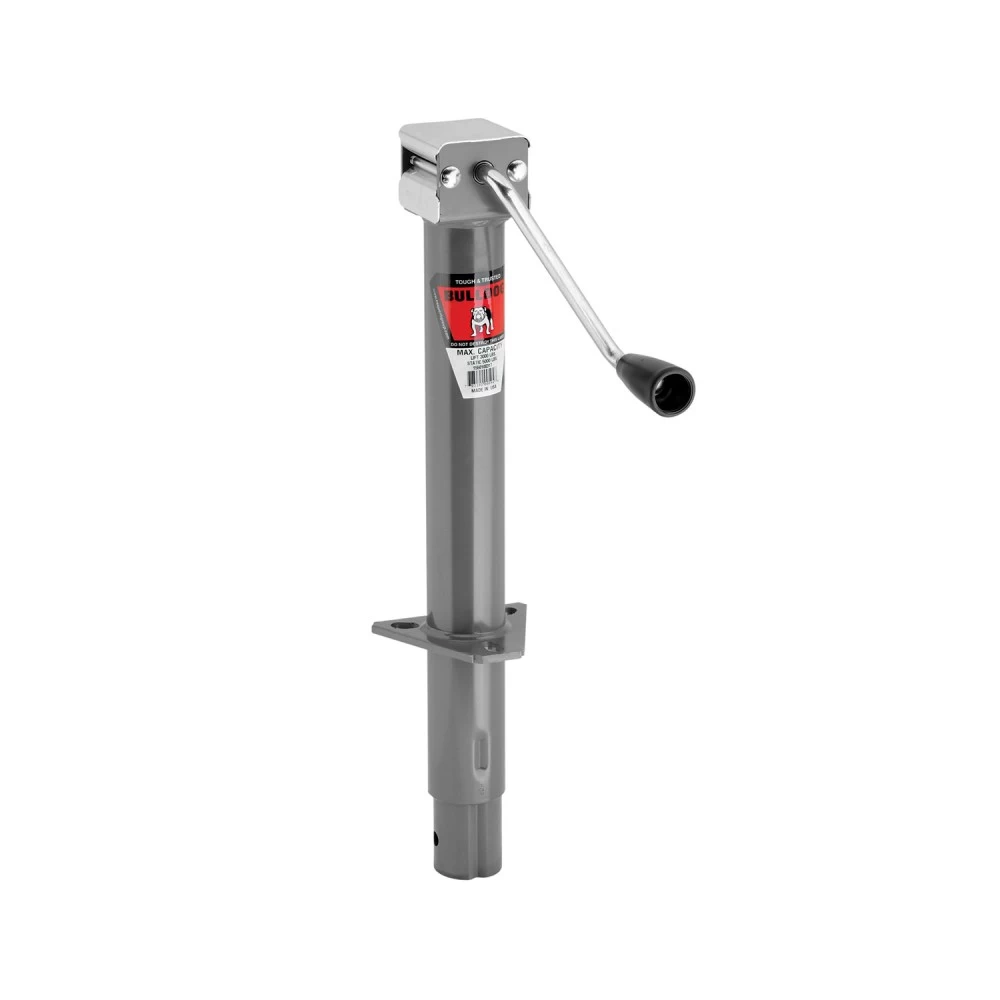

BULLDOG round jacks are recognized as the industry standard by leading agricultural, commercial, horse, livestock, and other trailer manufacturers. For over three quarters of a century, BULLDOG jacks have been demonstrated to be the most reliable, field-proven jacks on the market.
Key Features
- Smooth, comfortable, ergonomic design
- Dependable vertical and side load capacity
- Proven reliability for long-term use at rated loads
- Precision fitted parts for extra stability
- Grey painted outer and inner tube
- Limited 5-year warranty
Specifications
| Specification | Details |
|---|---|
| Lift Capacity | 3,000 lbs. |
| Retracted Bracket Height | 7" from bracket to bottom |
| Extended Bracket Height | 20" |
| Travel/Lift | 13" |
| Clearance | 14.5" from bracket to top |
| Brackets | Weld-on/bolt-on bracket works with any standard A-Frame mount |
| Handle Radius | 5.80" |
| Inner Tube Diameter | 2" |
| Outer Tube Diameter | 2-1/4" |
| Wheel and Base | Sold separately |
Features
Specs
Country of Origin:
string
Manufacturer Name:
Bulldog
Manufacturer Part Number:
1550100317
