Description

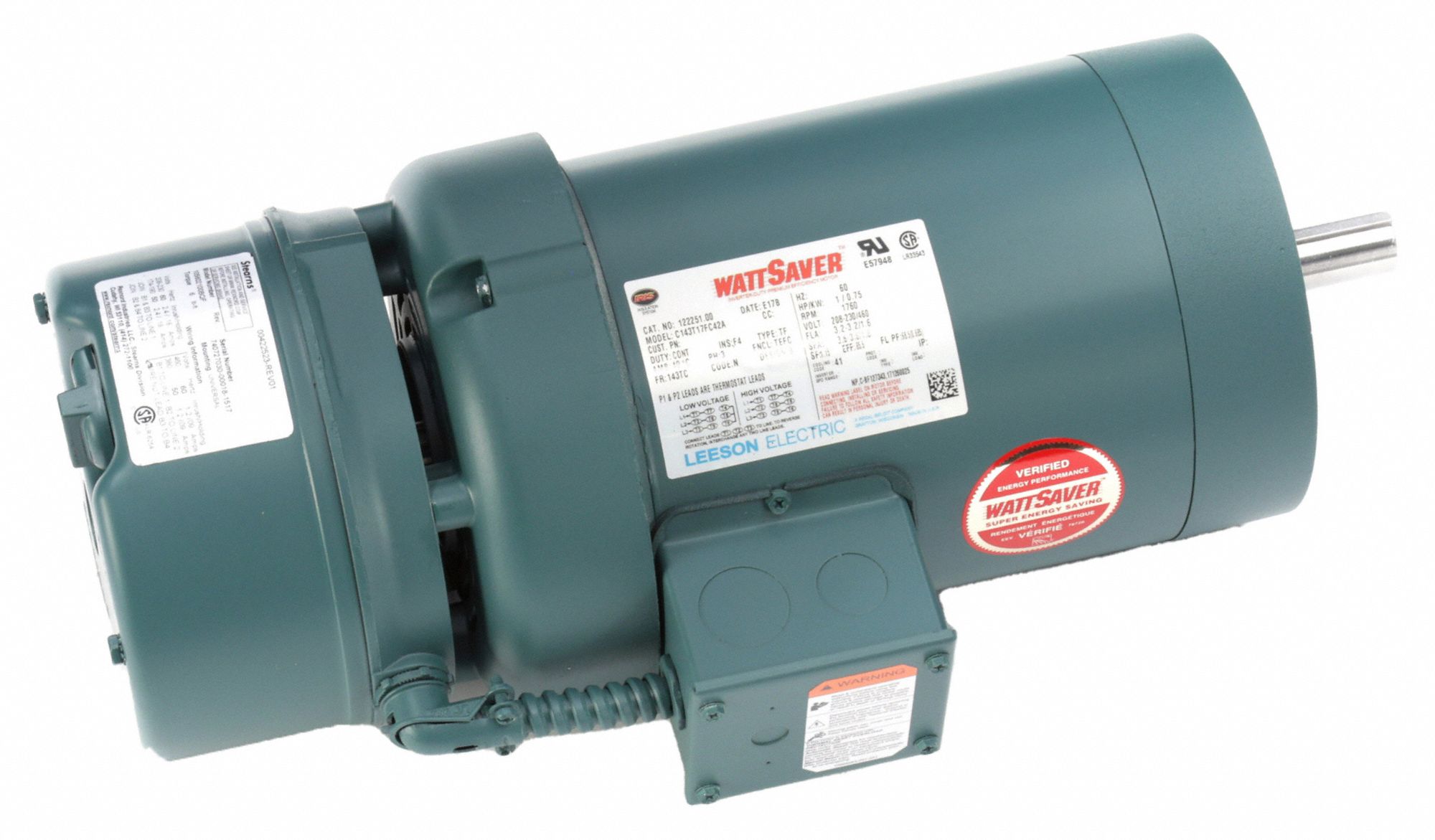

Brake Motor Three Phase Motor Design 3-Phase 1 HP Nameplate RPM 1 760 No of Speeds 1 Voltage 208-230/460V AC 1.
70 A Full Load Amps 143TC Frame Usable @ 208V Yes Usable @ 200V No 60 Hz Hz Motor Service Factor 1.
15 Motor Thermal Protection Thermostat Ins.
Class F Max Ambient Temp 40 Degrees C Duty Cycle Continuous Motor Shaft Rotation CW/CCW Motor Enclosure Design Totally Enclosed Fan-Cooled Motor Mounting Type Face Motor Mounting Position Horizontal Inverter Rated No- Alternate Part Numbers- 61KN05- 12225100
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
US
Manufacturer Name:
122251
Manufacturer Part Number:
LEESON
