Description

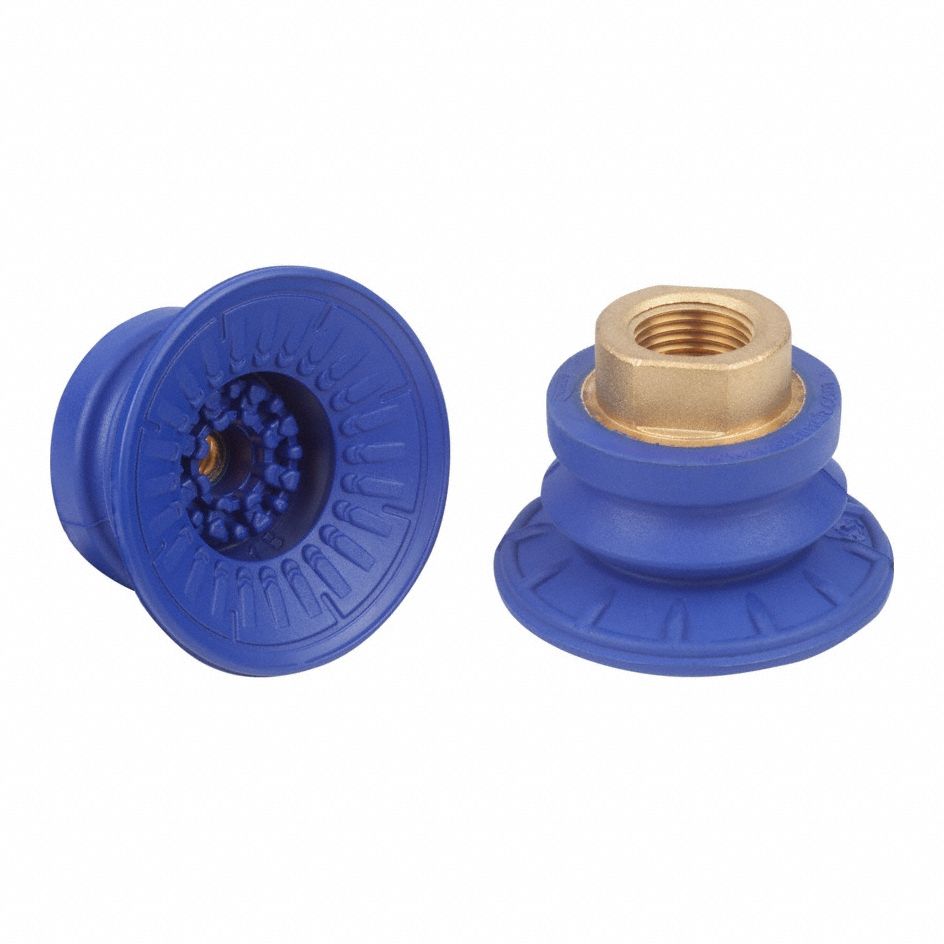

Item Vacuum Pad Assembly Adapter Material Brass Durometer 60 A For Use With Handling Sheet Metal Maximum Vacuum Pressure -0.
6 bar Number of Folds 1.
5 Outside Diameter 50 mm Overall Height 51.
9 mm Pad Color Blue Pad Diameter 56 mm Hardness 60 Shore A Pad Height 36.
9 mm Pad Material NBR Pad Type Bellows Port Size 3/8 in Port Type NPT Series SAB Standards DIN ISO 3302-1 M3 Stroke 11.
5 mm Weight 32.
3 g- Alternate Part Numbers- 814H85- 10010601971
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
DE
Manufacturer Name:
10.01.06.01971
Manufacturer Part Number:
SCHMALZ
