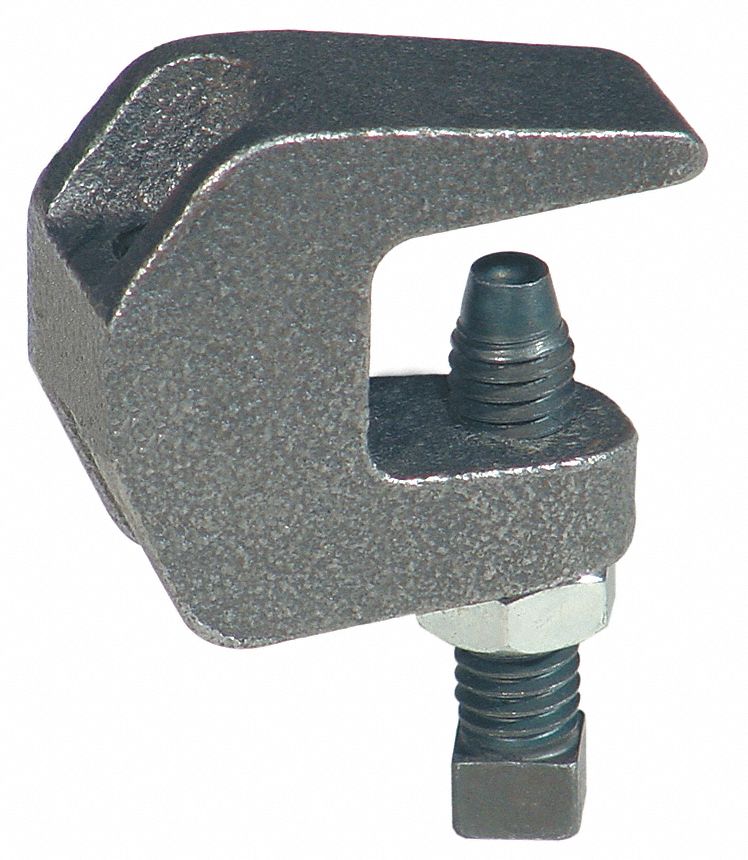

Beam Clamp Beam Clamp Type C-Clamp Beam Mount Location Bottom Top Clamp Length 2.
13 in Clamp Material Ductile Iron Clamp Width 1.
06 in For Beam Shape/Type H-Beam For Threaded Rod Size 1/2 in Includes Locknut Yes Installation Torque 125 in-lb Load Capacity 500 lb Throat Depth 3/4 in Standards ANSI/MSS SP-69 Type 19 ANSI/MSS SP-69 Type 23 cUL Listed A-A-1192A Type 19 A-A-1192A Type 23 FM Approved MSS SP-58 Type 19 MSS SP-58 Type 23 UL Listed WW-H-171-E Type 23- Alternate Part Numbers- 4HYE6- 0560009078- 4HYE6
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
CN
Manufacturer Name:
560009078
Manufacturer Part Number:
ANVIL
