Description

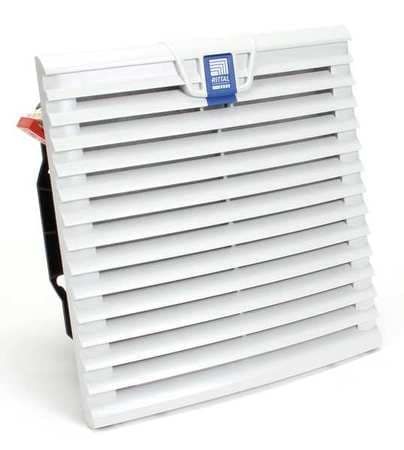

RITTAL 3240100 - AXIAL FAN 230VAC 10-1/10IN H 10-1/10IN W - AXIAL FAN SHAPE SQUARE CFM @ 0.
000-IN.
SP 106 VOLTAGE 230VAC 0.
21/0.
19 AMPS 35/34 WATTS ELECTRICAL CONNECTIONS TERMINALS 51/46 DBA BEARINGS BALL 50/60 HZ 1 PHASE HEIGHT 10-1/10 IN.
WIDTH 10-1/10 IN.
DEPTH 5-1/5 IN.
MOUNTING POSITION VERTICAL OR HORIZONTAL MOUNTING EYE O.
C.
8-13/16 IN.
MOTOR TYPE SELF STARTING SHADED POLE MOTOR INSULATION CLASS B THERMAL PROTECTION IMPEDANCE MAX AMBIENT TEMP 131F BLADE MATERIAL STEEL HOUSING MATERIAL PBT PLASTIC - EQUAL TO G4130612
Features
Specs
Manufacturer Name:
RITTAL
Manufacturer Part Number:
3240100
