Description

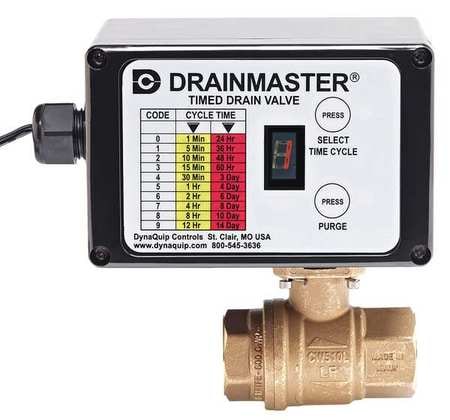

DYNAQUIP CONTROLS AD2A 1/2 - AUTO DRAIN VALVE 1/4IN NPT 3.
1 GAL/CYCLE - TIMED ELECTRIC AUTO DRAIN VALVE PIPE SIZE 1/4 IN NPT DRAIN SIZE 1/2 IN.
DRAIN RATE 3.
1 GAL.
/CYCLE ADJUSTABLE DRAIN CYCLE 1 MIN TO 14 DAYS PURGE TIME 7 SEC.
VOLTAGE 115V MAX PRESSURE 200 PSI OPERATING TEMP RANGE 35 DEGREES TO 165 DEGREES F HZ 60 AMPS AC 0.
83 BODY MATERIAL LEAD FREE BRASS OVERALL HEIGHT 5-21/64 IN.
OVERALL WIDTH 5 IN.
OVERALL DEPTH 3-3/4 IN.
INCLUDES 1/4 IN BRASS BUSHINGS - EQUAL TO G9503487
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
DYNAQUIP CONTROLS
Manufacturer Part Number:
AD2A 1/2
