Description

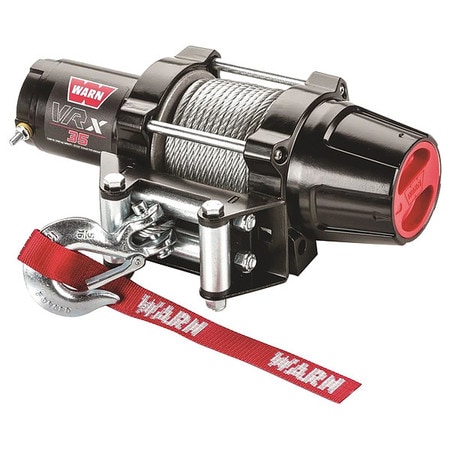

WARN 101035 - ATV/UTV ELECTRIC WINCH ROTATING END CAP - ATV/UTV ELECTRIC WINCH VOLTAGE RATING 12VDC MOTOR HP 1.
2 WINCH GEAR TYPE 3-STAGE PLANETARY 1ST LAYER LOAD CAPACITY 3500 LB FULL LOAD AMPS 192 CLUTCH RELEASE YES FREE SPOOLING CLUTCH TYPE ROTATING END CAP PULLEY BLOCK NO INCLUDED ROPE DIA 7/32 IN INCLUDED ROPE LENGTH 50 FT MECHANICAL BRAKE YES OVERALL LENGTH 13-23/64 IN.
OVERALL WIDTH 13-23/64 IN.
OVERALL HEIGHT 4-47/64 IN.
SERIES VRX 35 NO LOAD LINE SPEED 15.
8 FPM WINCH GEAR RATIO 153 1 1ST LAYER LINE SPEED 13.
4 FPM - EQUAL TO 492P74
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
WARN
Manufacturer Part Number:
101035
