Description

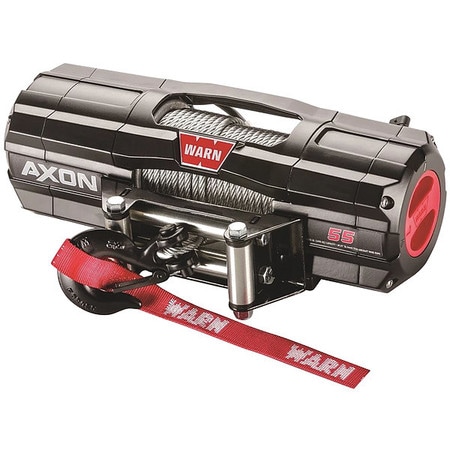

WARN 101155 - ATV/UTV ELECTRIC WINCH ROTATING END CAP - ATV/UTV ELECTRIC WINCH VOLTAGE RATING 12VDC MOTOR HP 1.
8 WINCH GEAR TYPE 3-STAGE PLANETARY 1ST LAYER LOAD CAPACITY 5500 LB FULL LOAD AMPS 254 CLUTCH RELEASE YES FREE SPOOLING CLUTCH TYPE ROTATING END CAP PULLEY BLOCK NO INCLUDED ROPE DIA 1/4 IN INCLUDED ROPE LENGTH 50 FT MECHANICAL BRAKE YES OVERALL LENGTH 15 IN.
OVERALL WIDTH 15 IN.
OVERALL HEIGHT 4-53/64 IN.
SERIES AXON 55 NO LOAD LINE SPEED 15.
8 FPM WINCH GEAR RATIO 235 1 1ST LAYER LINE SPEED 13.
4 FPM - EQUAL TO G1201941
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
WARN
Manufacturer Part Number:
101155
