Description
Key Features
- 12MP USB digital camera captures photos & live videos on Windows 8.1/10/11, Mac OS X, and Linux computers
- User-friendly software for Windows offers editing/processing and advanced features including Stitching, EDF, Video Recording and Measurement functions
- Linux and Mac software records video and still images, with controls for exposure and color
- Supports Native C/C++, C#, Directshow, Twain, Labview
- Fits 3 mounting sizes: 23mm, 30mm and 30.5mm (two mounting adapters included)

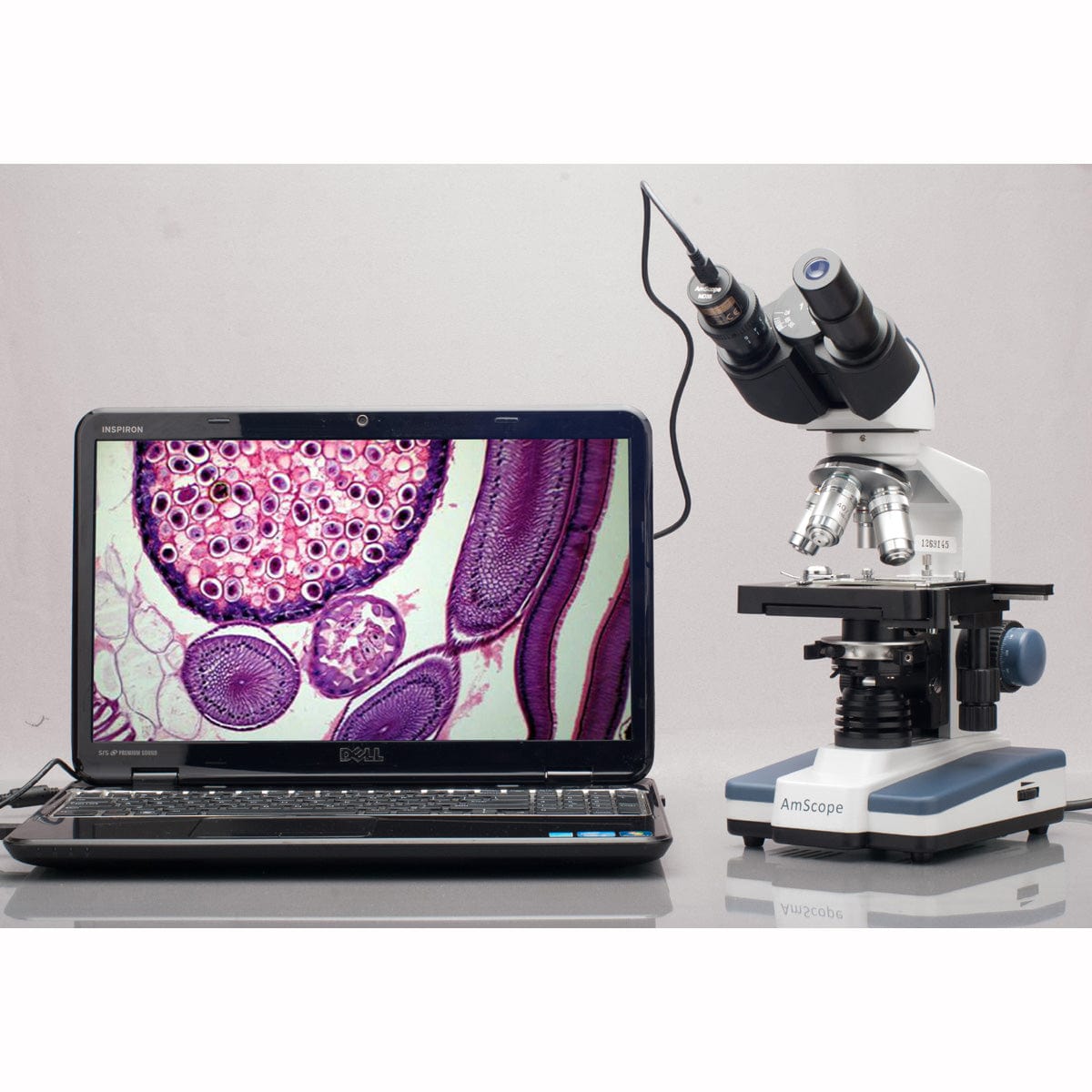

A Webcam for Your Microscope
AmScope's MD series digital eyepiece cameras are lightweight and compact, making them perfect companions to any microscope. Another huge benefit is their ability to be used with popular video conferencing apps just like a webcam. This is because they use UVC protocol, making them plug-and-play compatible on most platforms, including Windows, Mac OS, and Linux. Whether remote-streaming a QC line or partcicpating in an online class, the MD series digital eyepiece can connect you to the world.

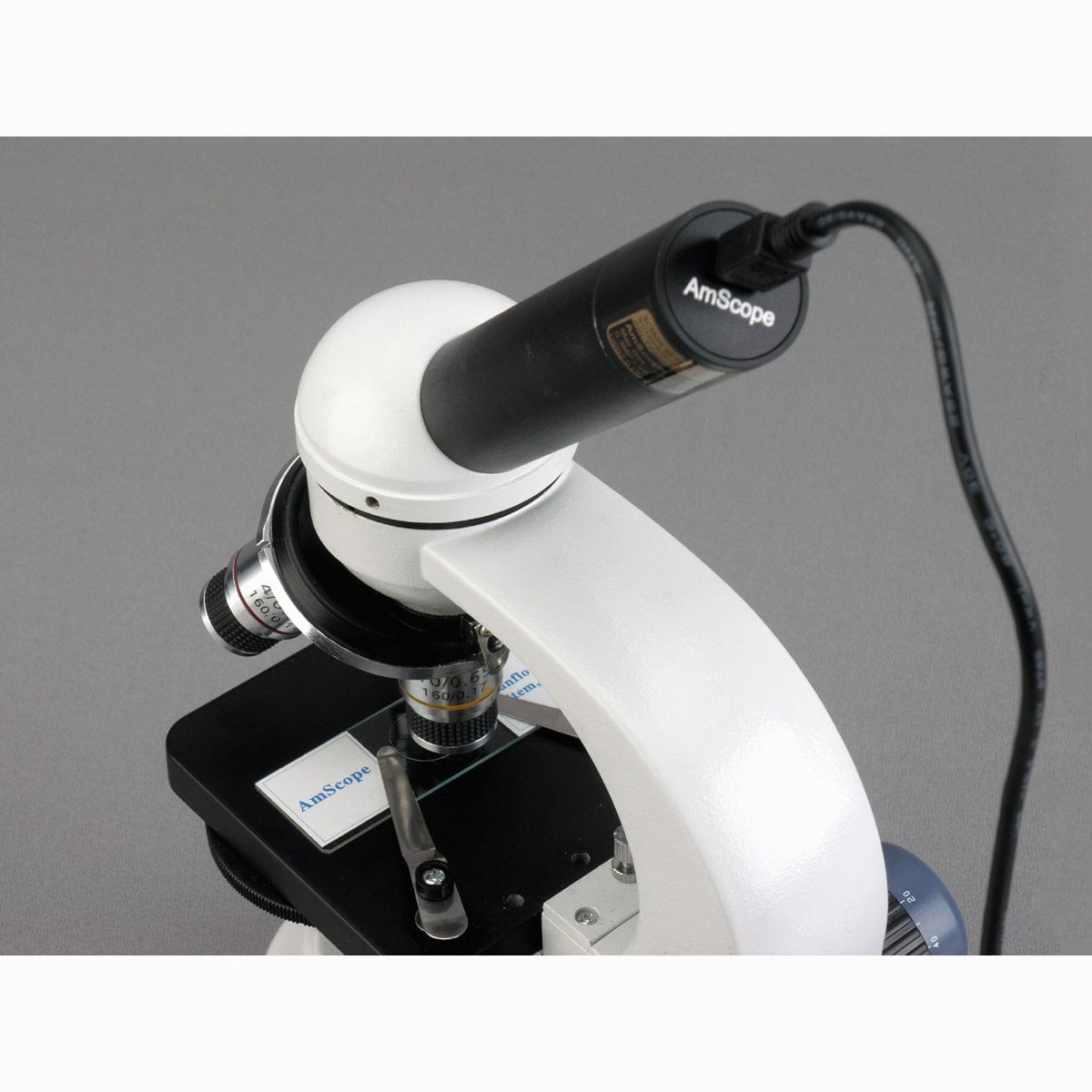

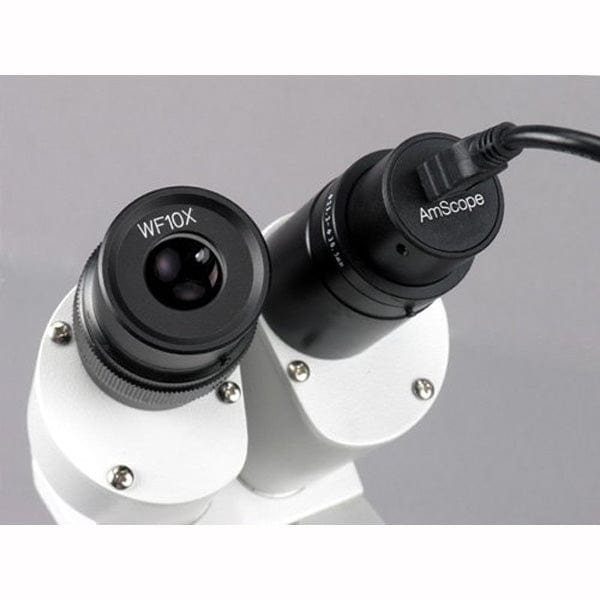

The MD1200A is an ultra-compact 12MP USB digital microscope camera, ideally suited for use as an eyepiece camera. By itself, it will fit 23mm ocular or photo ports, and it can be adapted to fit 30mm or 30.5mm ports using the included adapters. Using the USB interface for both connectivity and power, only a single cable is needed.
With software available for Windows, Mac, and Linux, this camera package is a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. With the ability to calibrate scales at multiple magnifications, the software can be used for multi-level inspection. Independent preview and capture resolutions allow you to view high-speed video while simultaneously capturing high-definition images. For Mac and Linux, there is a lite version of the software which can capture video and still images, and includes limited processing features.
Specifications
| Sensor | |
| Sensor Type | CMOS (color) |
| Sensor Size | 1/2.3" format (5.95mm x 4.71mm) |
| Pixels | 12M |
| Pixel Size | 1.55µm x 1.55µm |
| Shutter | Electronic Rolling shutter |
| Sensitivity | 250LSB |
| Camera | |
| Frame Rate(s) | 20fps @ 3840x3040 20fps @ 1920x1520 20fps @ 960x760 |
| Connectivity | USB 2.0 |
| Mounting Size | 23mm |
| Compensating Lens | — |
| Power | 5V over USB |
| Dimensions | 27.2mm Ø x 40mm |
| Operating Temperature | -10-50°C |
| Operating Humidity | 30-80>#/td### |
Software
| OS Requirements | Windows (32/64 bit) 8.1/10/11, Mac OS 10.8+, Linux kernel 3.13+ | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Hardware Requirements | Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB 2.0 | ||||||||||||||||
| Features |
|

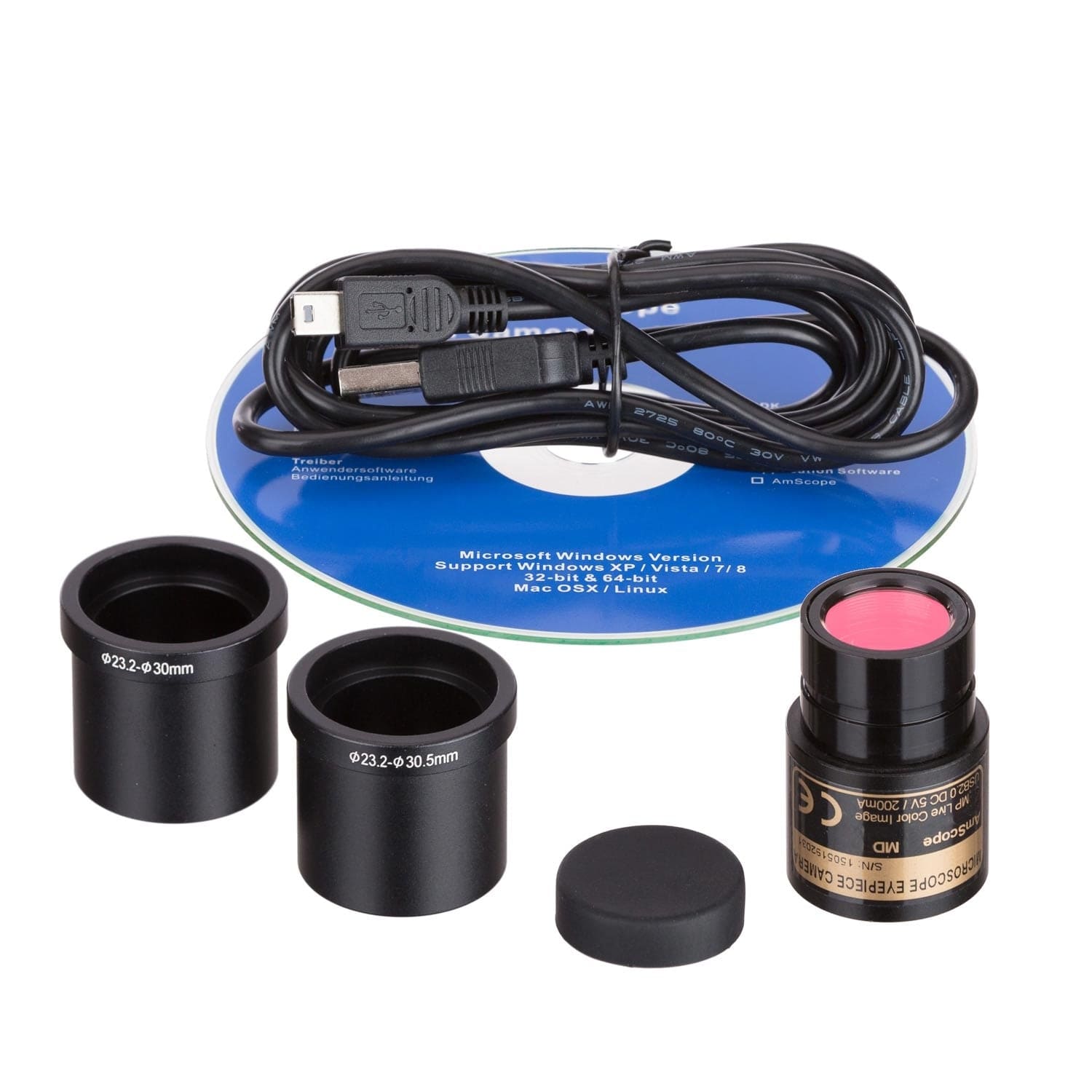

Contents:
One Digital CameraOne USB CableOne 23mm to 30mm Sizing AdapterOne 23mm to 30.5mm Sizing AdapterOne CD with Software and User's Instructions
| application | Camera-Brightfield |
| camera application | PC & Mac Display |
| camera connectivity | USB 2.0 |
| camera mounting size | 23mm, 30.5mm, 30mm |
| camera pixel | 12.0MP |
| camera sensor | CMOS |
| camera type | Brightfield |
| compatibility | PC & Mac |
| Manufacturer | AmScope |
| mounting size | Camera-23mm, Camera-30.5mm, Camera-30mm |
| pixel | 12.0MP |
| product condition | NEW |
| product contents | Packing List: One 12MP Digital CameraOne USB CableTwo AdaptersOne CD with Software and User's Instructions |
| product video ids | 19HwRyA5GpU |
| prop 65 |  |
| sensor | Camera-CMOS |
