Description

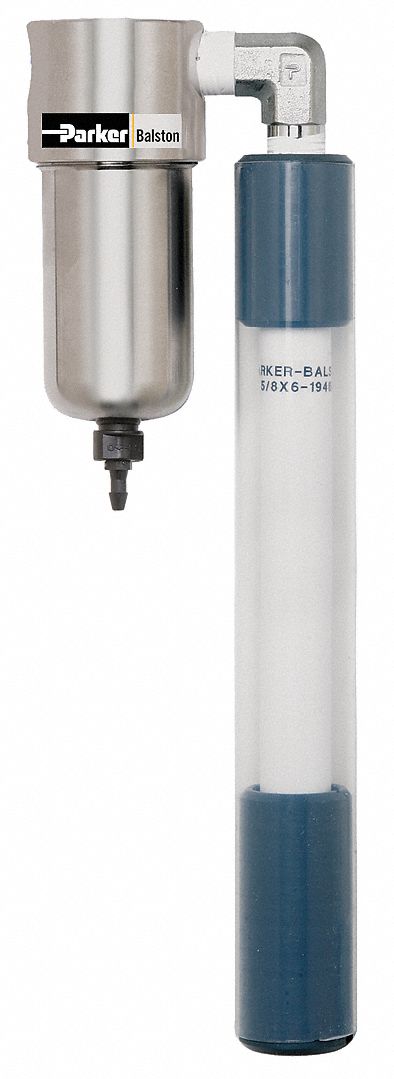

Membrane Air Dryer Air Inlet Size 1/4 in Air Inlet Type NPT Maximum Flow Rate 0.
6 cfm Maximum Operating Pressure 150 psi Maximum Operating Temperature 120 Degrees F Maximum Ambient Temperature 130 Degrees F Drain Type Automatic ISO Class 1 2 4 Dew Point -7 Degrees F Overall Width 3 in Overall Height 9 1/4 in Series ECD Air Outlet Size 1/4 in Air Outlet Type NPT Body Material Stainless Steel FEP PVC Bracket Kit Included Yes Drain Included Yes Drain Port Connection Style Barb
Features
Extra Information
Processing Time:
2-3 days
