Product Overview

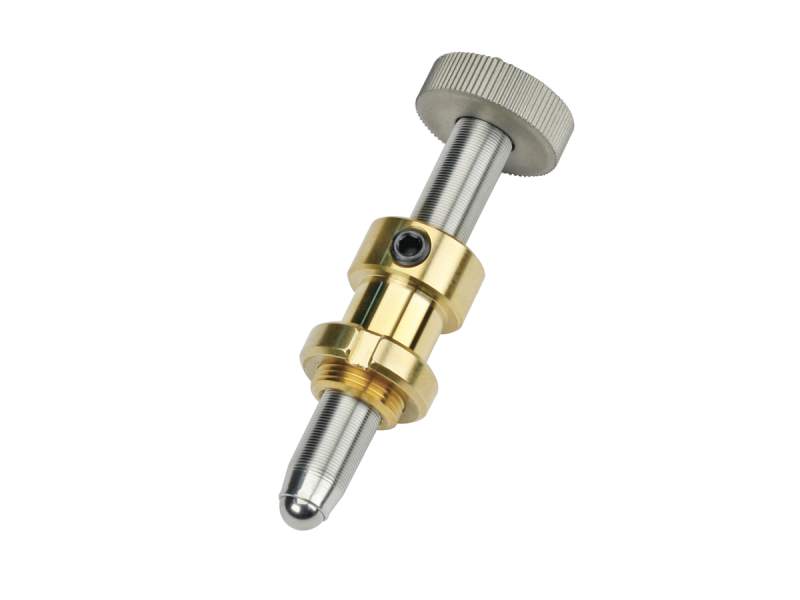

The 9302 Adjustment Screw provides 1.0 inch (25.4 mm) of smooth, wobble-free adjustment combined with exceptional long-term stability and low susceptibility to thermal variation. It is the same 1/4-80 precision screw used in our optic mounts and allows you to build your own mounts or positioners. In addition to a travel of 1.0 in. (25.4 mm); the screw has a ball tip, braked brass bushing, and is knob adjusted.
Key Features
- Wobble-free adjustment
- Exceptional long-term stability
- Low susceptibility to thermal variation
- Compatible with 1/4-80 precision mounts
- Easy knob adjustment
Benefits
- Reduces operational errors
- Enhances system reliability
- Improves precision in positioning
Specifications
| Specification | Detail |
|---|---|
| Travel Range | 25.4 mm |
| Adjustment Screw Thread | 1/4-80 |
| Drive Type | Knob |
| Axial Load Capacity | 90 N |
| Lock | Side Lock |
| Tip Style | Ball |
| Sensitivity | 0.88 µm |
| Weight | 30 g |
Features
Specs
Manufacturer Name:
Newport Corporation
Manufacturer Part Number:
9302
