Description

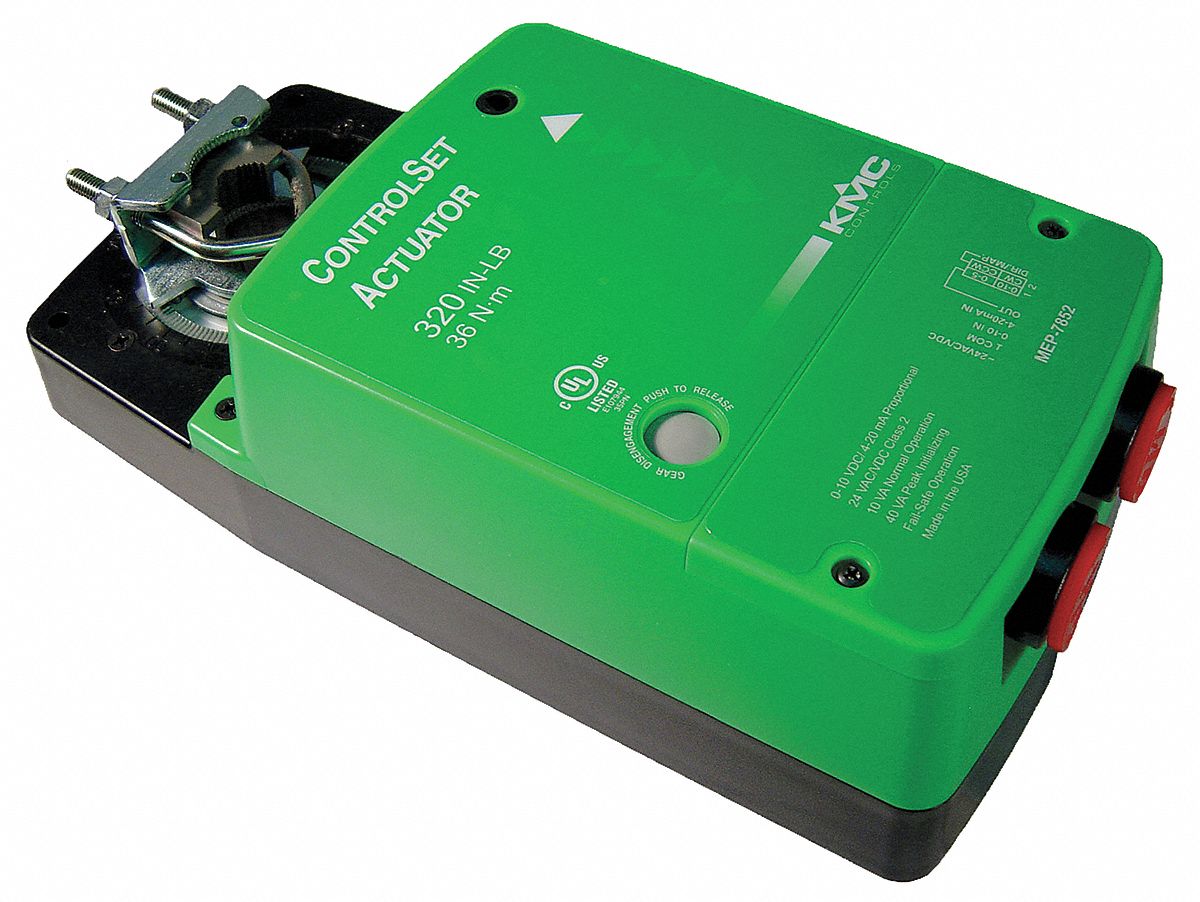

Actuator Valve Application Damper and Valve Signal Type Proportional Rated Torque 320 in-lb Input Voltage 24V AC/DC Output Signal 0 to 10V DC Contact Form Not Applicable Electrical Connection Type Hardwired For Use With Building Automation Systems Building Automation System Compatible NEMA Rating 2 IP Rating IP54 Spring Return Spring Return Time to Close 90 sec Shaft Type 3/8 in to 1 in Round or 5/16 in to 5/8 in Square Shaft Rotation CW/CCW Stroke Degree 94 Degrees
Features
Extra Information
Processing Time:
2-3 days
