Description

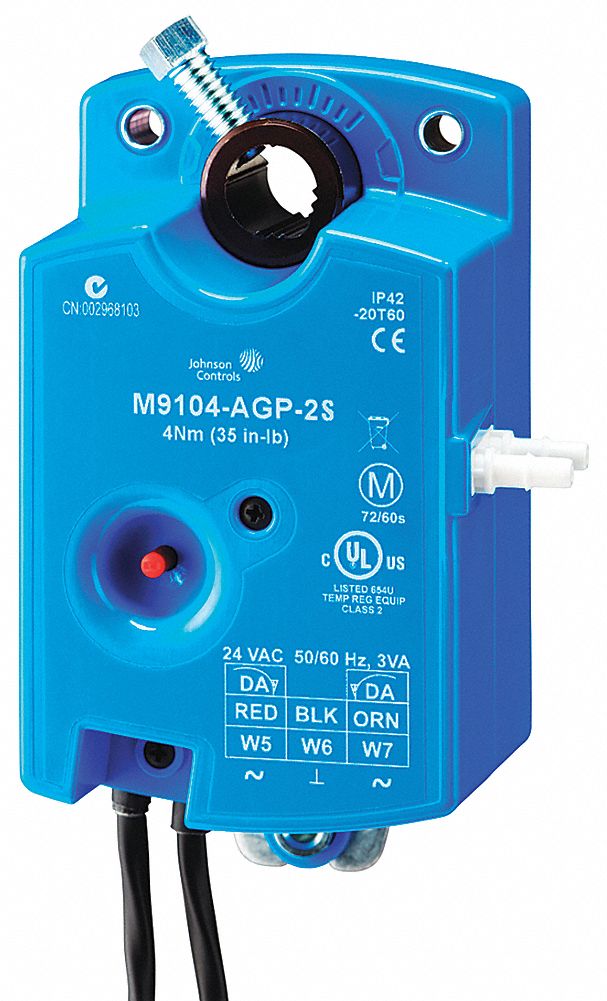

Actuator Valve Application Damper Signal Type Floating Point Rated Torque 35 in-lb Input Voltage 20 to 30V AC Electrical Connection Type Hardwired For Use With Building Automation Systems Building Automation System Compatible NEMA Rating 1 IP Rating IP42 Spring Return Non-Spring Return Time to Close 60 sec Shaft Type Self-Centering Shaft Rotation CW/CCW Stroke Degree 93 Degrees Mounting Type Direct Mount Maximum Operating Temperature 125 Degrees F- Alternate Part Numbers- 35LY73- M9104AGP2S- 35LY73
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
MX
Manufacturer Name:
M9104-AGP-2S
Manufacturer Part Number:
JOHNSON CONTROLS
