Description

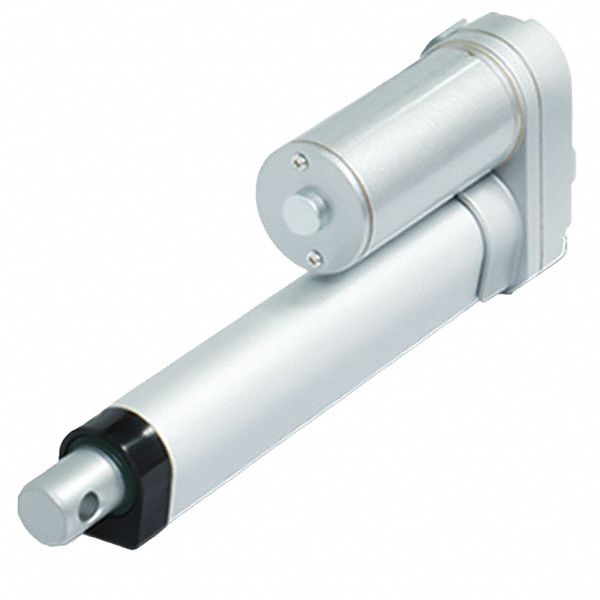

Actuator Motor Type Permanent Magnet Voltage 12V DC Nut Material Plastic Load Capacity 112 lbf Stroke Length 50 mm Speed at Full Load 0.
21 in/sec Duty Cycle 25 Percent Full Load Current 3.
2 A Retracted Length 155 mm Gear Material Aluminum Includes Capacitor Capacitor Included Drive System Type Gear Enclosure IP Rating IP65 Housing Material Aluminum Limit Switch Setting Fixed Operating Temperature - Maximum 149 Degrees F Operating Temperature - Minimum -13 Degrees F- Alternate Part Numbers- 801VT1- ND3L122050IP65A155
Features
Extra Information
Processing Time:
2-3 days
Specs
Country of Origin:
TW
Manufacturer Name:
ND3L-12-20-50-IP65-A155
Manufacturer Part Number:
NTN
