Product Overview

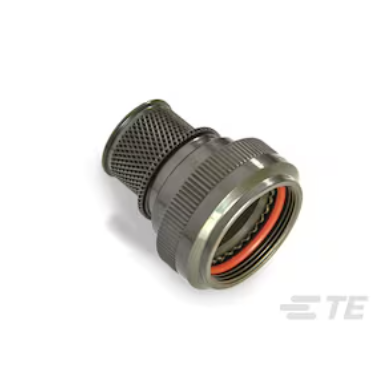

The 91H1-13-06-46-J-HE100 is a premium screened backshell designed for circular connectors. Constructed from durable stainless steel, this backshell features a 9.5 mm cable entry, making it ideal for various applications requiring reliable connectivity in harsh environments.
Key Features
- Material: Stainless Steel
- Body Orientation: Straight
- Shell Size: 13
- Entry Size: 06
- Cable Entry Diameter: 9.5 mm
- Termination Device Type: Spring
- Connector Compatibility: Circular (MIL-DTL-38999 Series III & IV)
- Sealable: Yes
Benefits
- Ensures robust and secure connections
- Resistant to environmental factors thanks to stainless steel construction
- Facilitates easy installation with its straight orientation
- Compatible with a variety of applications requiring durable connectivity
Specifications
| Attribute | Description |
|---|---|
| TE Internal # | AAF5519-00 |
| Connector Backshell Product Type | Backshell |
| Connector Backshell Product Style | Screened |
| Connection Type | Spring Termination |
| Connector Interface Specification | MIL-DTL-38999 Series III & IV |
| TE Connector Interface Code | H |
| Country of Origin (COO) | GB |
| ECCN | EAR99 |
| RoHS Compliance | Yes |
| HTS Code | 8538908180 |
