Description

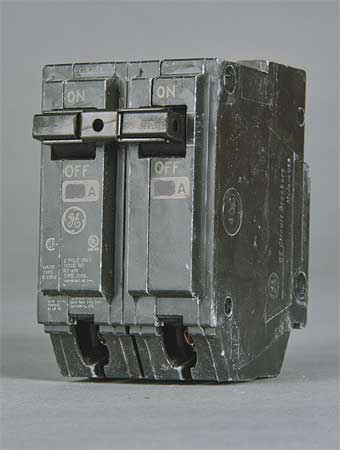

GENERAL ELECTRIC THQL2150 - 50A 2P 2IN GE CIRCUIT BREAKER - CIRCUIT BREAKERS PLUG-IN - DOUBLE POLE TYPE THQL - COMMON TRIP FACTORY INSTALLED LUGS Q LINE''AMP RATING=50 - COPPER-TO-COPPER CONNECTIONS, CALIBRATED FOR OPTIMUM TRIP PERFORMANCE, HEAT RESISTANT THERMOSET CASES AND COVERS, CEMENTED CALIBRATION SCREW.
MAY BE USED, WHEN MARKED TO ACCEPT, WITH AMERICAN SWITCH, ARROW HART, BRYANT, GENERAL SWITCH, GTE, SYLVANIA, MOST ITE, MURRAY, WESTINGHOUSE TYPE BR, CHALLENGER, CROUSE-HINDS.
15 TO 30 AMP 14 - 8 CU OR 12 - 8 AL AWG WIRE, 35 TO 60 AMP 8 - 3 CU OR 8 - 2 AL AWG WIRE, 70 TO 100 AMP 6-1/0 CU OR 4 - 1/0 AL AWG WIRE.
UL LISTED, HACR RATED.
120/240 VOLT; - EQUAL TO 6122105
Features
Specs
Manufacturer Name:
GENERAL ELECTRIC
Manufacturer Part Number:
THQL2150
