Description

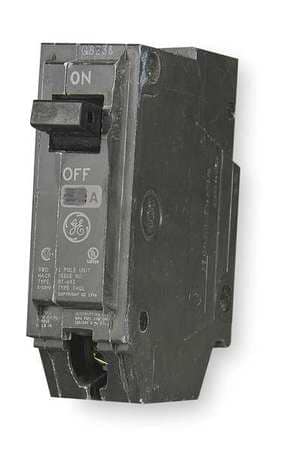

GENERAL ELECTRIC THQL1150 - 50A 1P 1IN GE CIRCUIT BREAKER - CIRCUIT BREAKERS PLUG-IN - SINGLE POLE TYPE THQL Q LINE AMP RATING=50 - COPPER-TO-COPPER CONNECTIONS, CALIBRATED FOR OPTIMUM TRIP PERFORMANCE, HEAT RESISTANT THERMOSET CASES AND COVERS, CEMENTED CALIBRATION SCREW.
TYPE THQL - 1" PER POLE.
MAY BE USED, WHEN MARKED TO ACCEPT, WITH AMERICAN SWITCH, ARROW HART, BRYANT, GENERAL SWITCH, GTE, SYLVANIA, MOST ITE, MURRAY, WESTINGHOUSE TYPE BR, CHALLENGER AND CROUSE-HINDS.
15 TO 30 AMP 14 - 8 CU OR 12 - 8 AL AWG WIRE, 35 TO 60 AMP 8 - 3 CU OR 8 - 2 AL AWG WIRE.
UL LISTED, HACR RATED.
1" MODULE, 120/240 VOLT; 10,000 AIR.
- EQUAL TO 6122014
Features
Specs
Manufacturer Name:
GENERAL ELECTRIC
Manufacturer Part Number:
THQL1150
