Product Overview

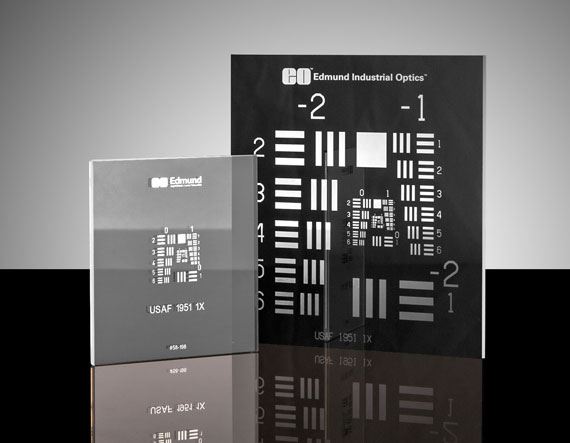

The USAF 1951 Glass Slide Resolution Test Targets provide precise evaluation of optical performance in various applications. Available in both positive and negative patterns, these targets are specifically designed for quality control of microscopes, magnifiers, and illuminated test equipment.
Key Features
- Negative and Positive Patterns on Glass
- Two Sizes Available
- Each is Boxed and Includes Resolution Value Chart
- High Resolution Target Available (down to 645 lp/mm)
Benefits
- Ensures accurate calibration and performance evaluation of optical systems.
- Meets military specifications for reliability and quality.
| Category | Specifications |
|---|---|
| General | Type: Negative Target, Options: Standard Resolution |
| Physical & Mechanical Properties | Dimensions (inches): 2 x 2, Thickness (mm): 1.50, Edges: Beveled, Flatness (mm): ≤0.00254 |
| Optical Properties | Coating: Vacuum-Deposited Durable Chromium, Substrate: Float Glass, Optical Density OD (Average): ≥3.0, Resolution: Minimum: Group 0, Element 1, Maximum: Group 7, Element 6, Surface Quality: 20-10 |
| Regulatory Compliance | RoHS 2015: Compliant, Certificate of Conformance: View, Reach 240: Compliant |
Features
Specs
Country of Origin:
United States
Manufacturer Name:
Edmund Optics
Manufacturer Part Number:
59-153
