Report item
Description

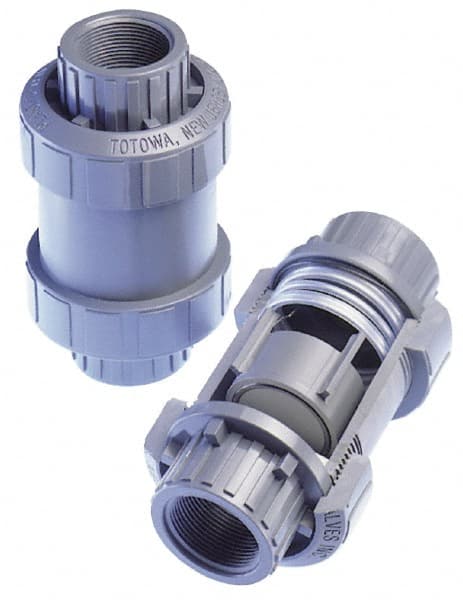

PLAST-O-MATIC CKD025V-PV - 1/4" FNPT PVC DISC CHECK VALVE - ITEM - CHECK VALVES CHECK VALVE, FLOW DESIGN SINGLE, MECHANISM AND BODY DESIGN INLINE DISC, BODY MATERIAL - VALVES PVC, PIPE OR TUBE SIZE 1/4 IN, CONNECTION TYPE FNPT X FNPT, CRACKING PRESSURE 0.
5 PSI, MOUNTING ORIENTATION HORIZONTAL, VERTICAL, SEAL MATERIAL VITON, MAX.
TEMP.
- VALVES 140 DEGREES F, MIN.
TEMP.
- VALVES 32 DEGREES F, MAX.
WATER PRESSURE - VALVES 150 PSI @ 77 DEGREES F, MAX.
STEAM PRESSURE - VALVES NOT RATED, SEAT MATERIAL VITON, FLOW - VALVES 2 GPM, FULL FLOW - VALVES NO - EQUAL TO G3885445
Features
Extra Information
Mandatory & Preferred Sources:
- Made in the USA
Specs
Manufacturer Name:
PLAST-O-MATIC
Manufacturer Part Number:
CKD025V-PV
